Datasheet
Overview
The ThinkPad Hybrid USB-C with USB-A Dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability like PXE boot and MAC address Pass-through the ThinkPad Hybrid USB-C with USB-A offers three high-speed USB3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks. And, with the included USB-C to USB-A adaptor it can also provide port replication to non-Lenovo or USB-C notebooks.
Features include:
- One dock for all notebooks: Enhances the performance of Lenovo USB-C notebooks and tablets through USB-C connection, as well as previous generation and market notebooks through the USB-C to USB-A adaptor.
- Performance: Provides up to dual UHD 4K display with DisplayPort and HDMI ports. Up to 10Gbps data transfer speed on three USB3.1 gen2 ports, and rapid charging for most current ThinkPad family notebooks.
- Enterprise manageability and simplification: Host of manageability features like PXE boot, Wake-On-Lan from sleep mode, and MAC address pass-through.
- Supported by the Lenovo Dock Manager, an advanced solution that automatically manages docking, as well as providing firmware updates, device queries, and analytics on all Lenovo Smart Docks.
Phyical Specifications
- Packed Physical Specification (approximate)
- Length: 270mm (10.63 in)
- Width: 165mm (6.49 in)
- Height: 88 mm (3.47 in)
- Weight : 1350g (2.98 lb)
- Unpacked Physical Specification (approximate):
- Length: 210mm (8.27 in)
- Width: 80mm (3.15 in)
- Height: 30mm (1.18 in)
- Weight : 475g (1.05 lbs)

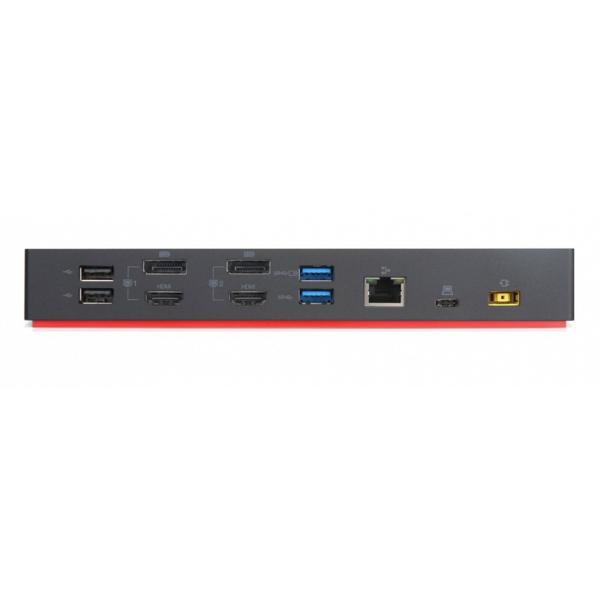

Ports

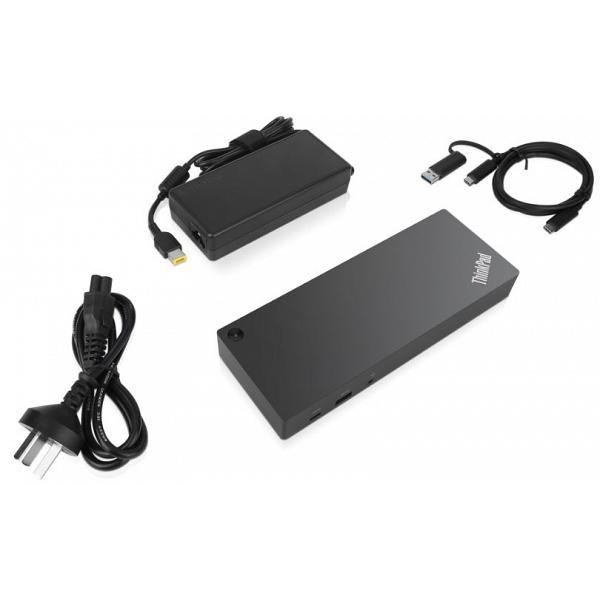

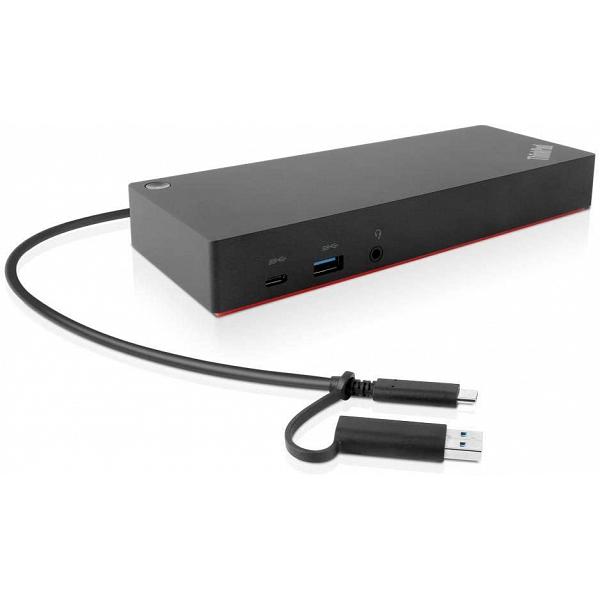

- Docking interface: USB-C cable with USB-C to USB-A dongle
- Three USB 3.1 gen2 (10Gbps, 1x always-on)
- Two USB 2.0
- USB-C port (Data, 5V 3A power)
- 10/1000 Gigabit Ethernet
- Two DisplayPort
- Two HDMI Port
- Combo Audio jackHDMI™
- Up to two UHD displays connection via DisplayPort™/HDMI™ ports
Monitor Resolution
- Number of external monitors: 2
- Up to two UHD displays connection via DisplayPort™/HDMI™ ports
- Maximum Resolution Support/Refresh Rate: 5120*2880@60Hz
Security
- Kensington Seurity lock slot
Operating Specifications
- Maximum Temperature: 35° C / 95° F
- Minimum Temperature: 0° C / 32° F
- Maximum Relative Humidity: 95% (no Condensation)
