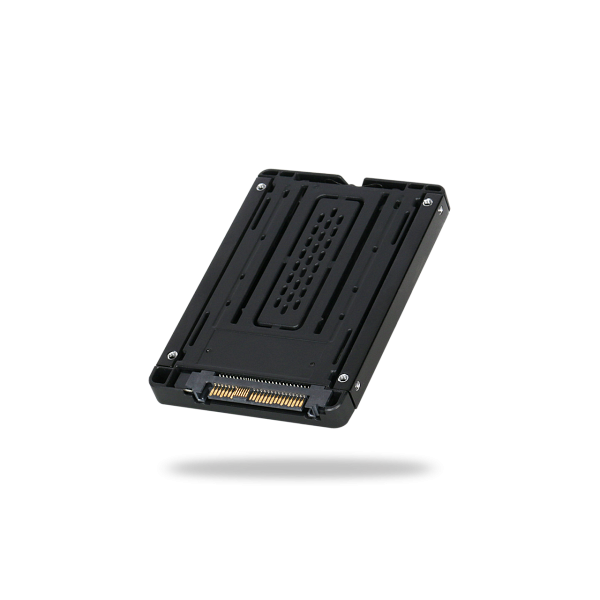

ICY DOCK's EZConvert MB705M2P-B converts an M.2 NVMe PCIe SSD into the exact dimensions and port locations as a standard 2.5-inch U.2 (SFF-8639) NVMe SSD without using any tools or screws for drive installation. The MB705M2P-B can be installed anywhere that accepts a bare 2.5-inch U.2 NVMe drive, such as a U.2 backplane, 2.5" mounting bracket, or ICY DOCK U.2 NVMe removable enclosures/mobile racks. The sturdy aluminum heat sink housing protects the delicate M.2 circuit board from bumps and drops, and work perfectly with the included thermal pad for optimal heat dissipation to keep your drive running cool, even under heavy load.

Removable Design

Because M.2 SSDs are not designed to be frequently swap, their connectors are very delicate, typically rated for only 250 insertion/removal cycles. The EZConvert MB705M2P-B has a durable U.2 connector rated for 10,000 insertion/removal cycles, allows you to add, remove, and replace drives without putting any wear on the internal connector.

Note: the host system has to support NVMe hot-plug function in order for the OS to detect the swapped drive while the system is powered on. If you are having trouble detecting your SSD, please refer to FAQ.

Perfect Compatibility

EZConvert MB705M2P-B accepts any 30mm-80mm M.2 PCIe NVMe SSD (2230 / 2242 / 2260 / 2280) and gives it the exact same dimensions, port locations, and screw-hole locations as a standard 9.5mm U.2 NVMe SSD.

The adjustable M.2 locker slides to accommodate all standard M.2 PCIe NVMe SSD drive lengths, including 2230 (30mm), 2242 (42mm), 2260 (60mm), and 2280 (80mm). The locker clips into the SSD screw hole to secure the drive without screws, saving you the hassle of dealing with tiny easy-to-lose screws while protecting your drive from vibration and movement damage.

Because the MB705M2P-B uses the standardized 2.5-inch U.2 form-factor, it can be installed into any U.2 backplane, 2.5-inch mounting bracket, or ICY DOCK U.2 NVMe removable enclosures/mobile racks such as MB699VP-B for a single drive.

Packed with Features

The dual-function full-metal lid protects delicate M.2 SSDs from bumps and drops. The aluminum lid also acts as a heat sink to keep NVMe drives at safe temperatures, even under heavy load.

The included thermal paste sticker can be attached on to the underside of the full-metal lid for increased heat dissipation.

The MB705M2P-B supports the full NVMe bandwidth specification of up to 64Gbps, letting you take full advantage of the fastest M.2 NVMe SSDs available.
